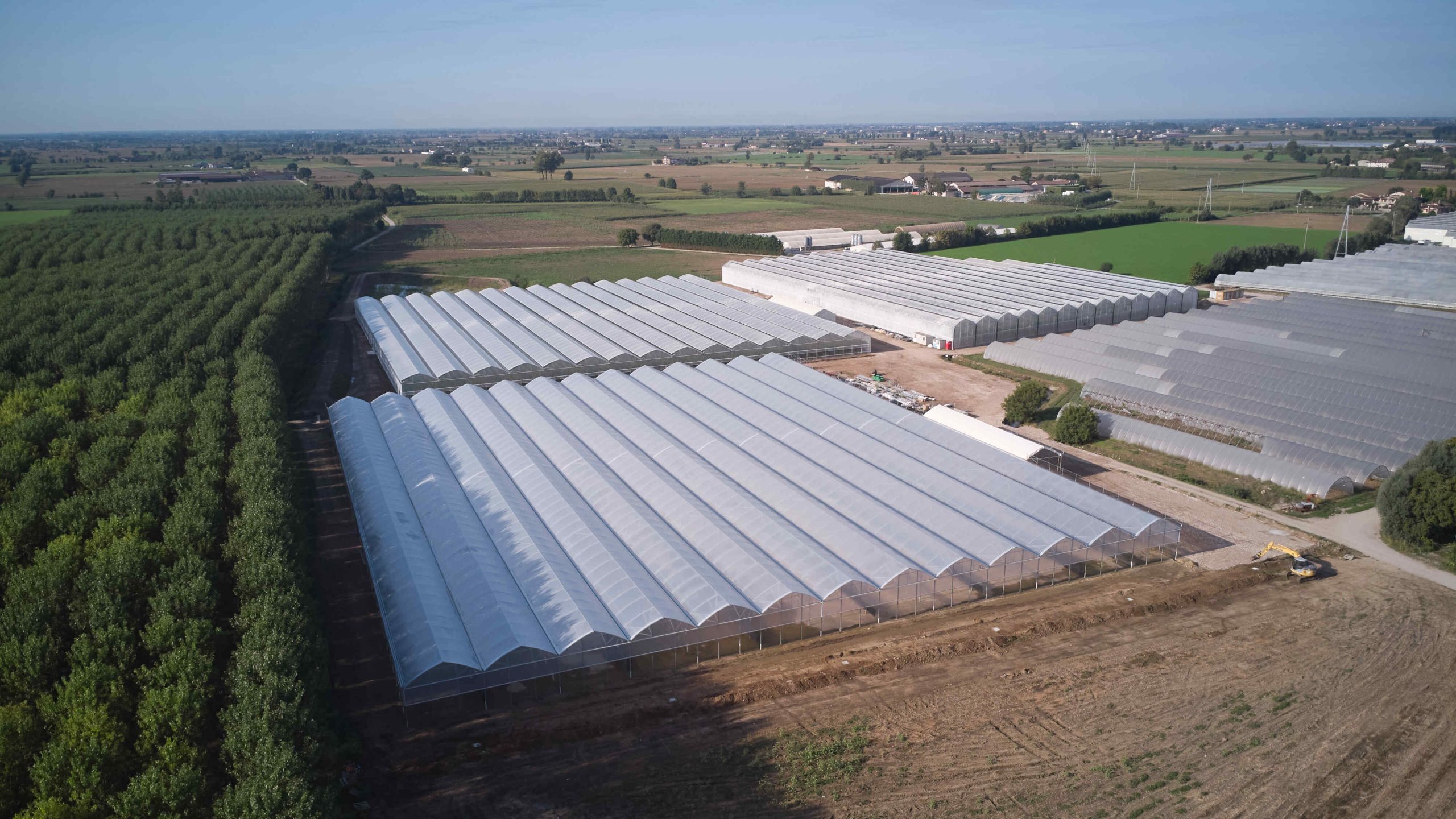

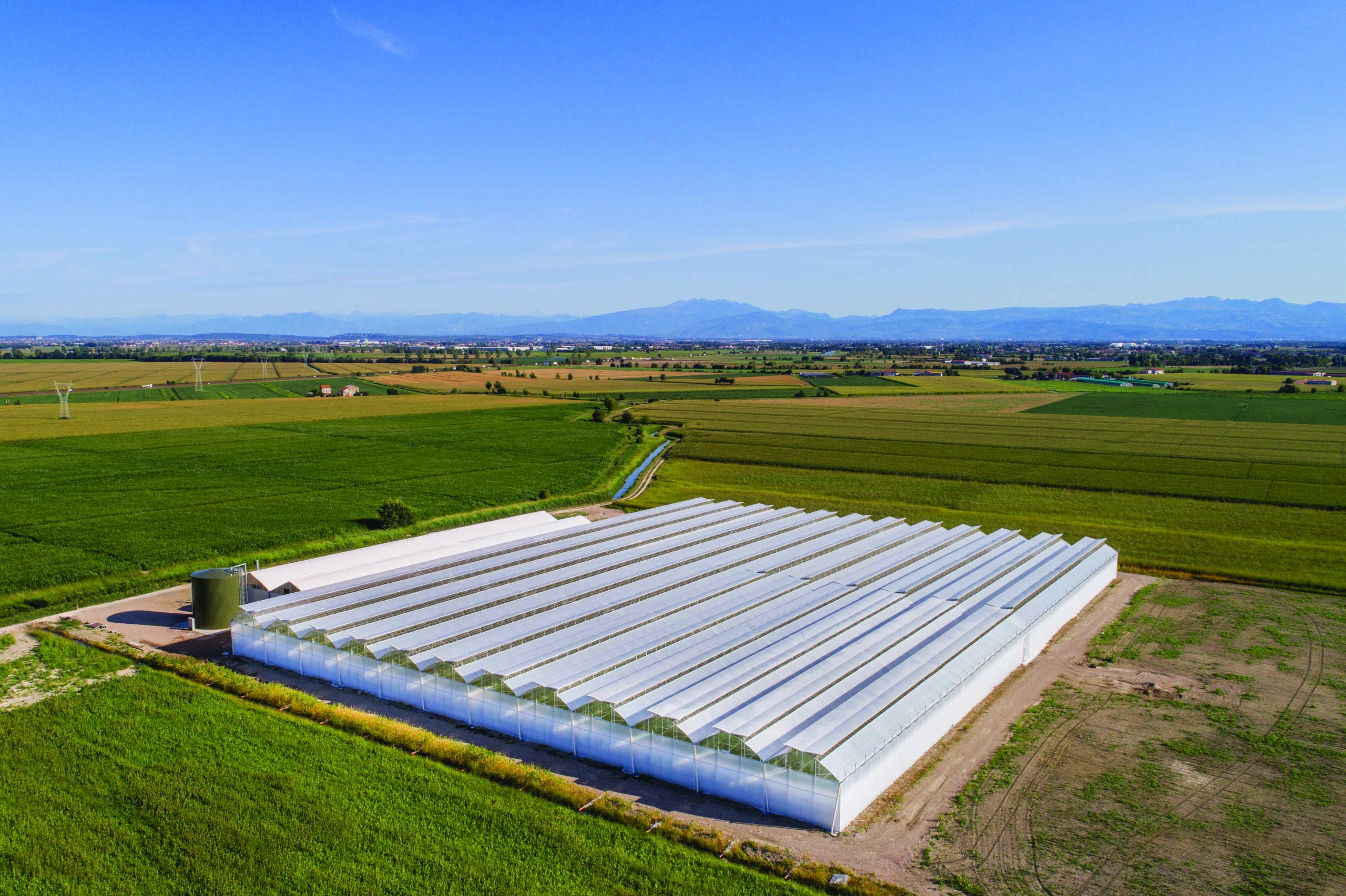

“Norhage Multi-Span greenhouse” – designed for commercial, high-yield cultivation.

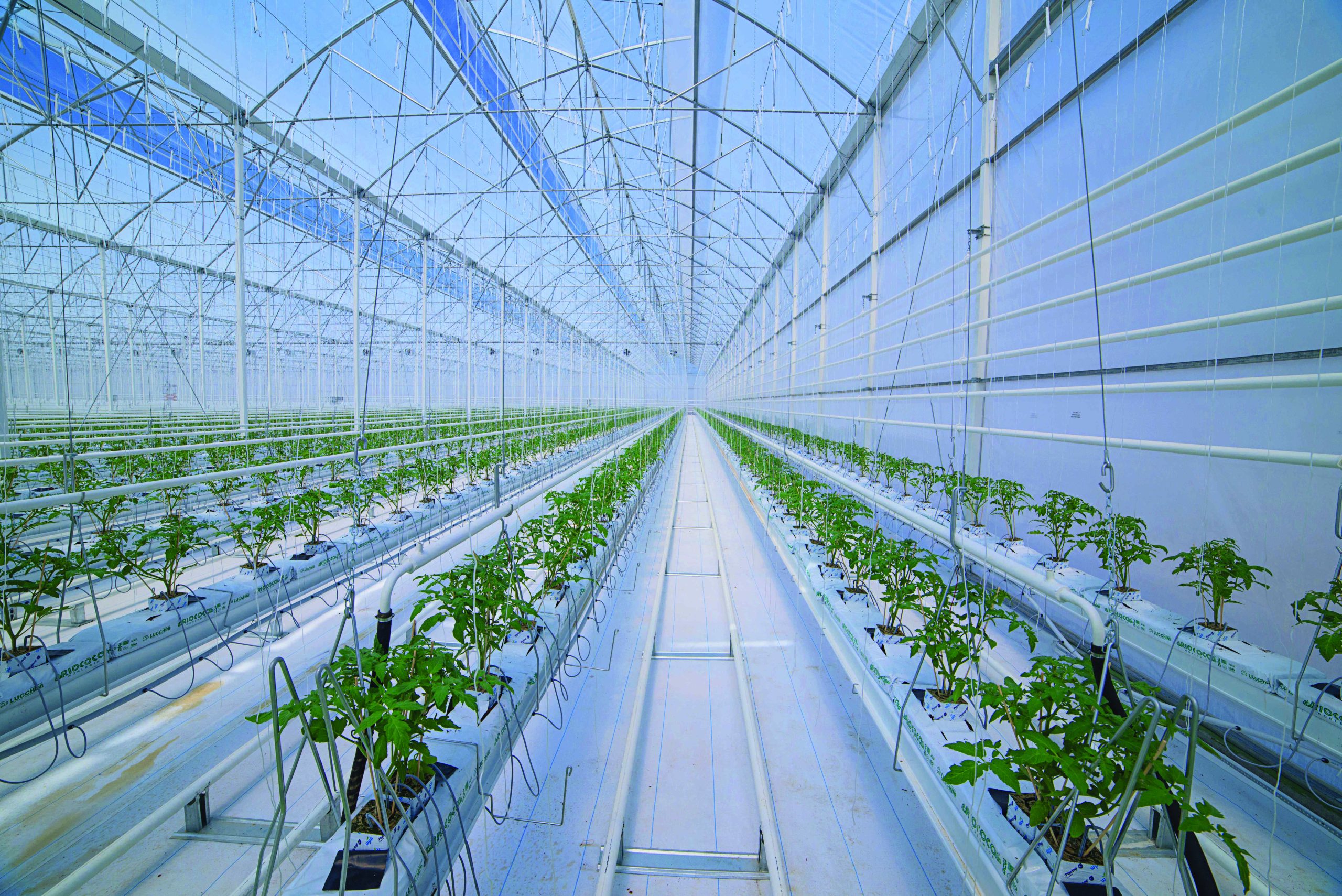

The Norhage Multi-Span greenhouse is an advanced multi-span structure designed for professional horticulture, vegetable production, and flower cultivation, where maximum yield and precise climate control are essential.
Thanks to its reinforced structure, advanced ventilation solutions, and the possibility of integrating modern technologies, this greenhouse is perfectly suited for intensive cultivation in various climate zones.
Whether for growing vegetables, flowers, or seedlings – it easily adapts to your cultivation strategy, site conditions, and technological requirements.
Applications

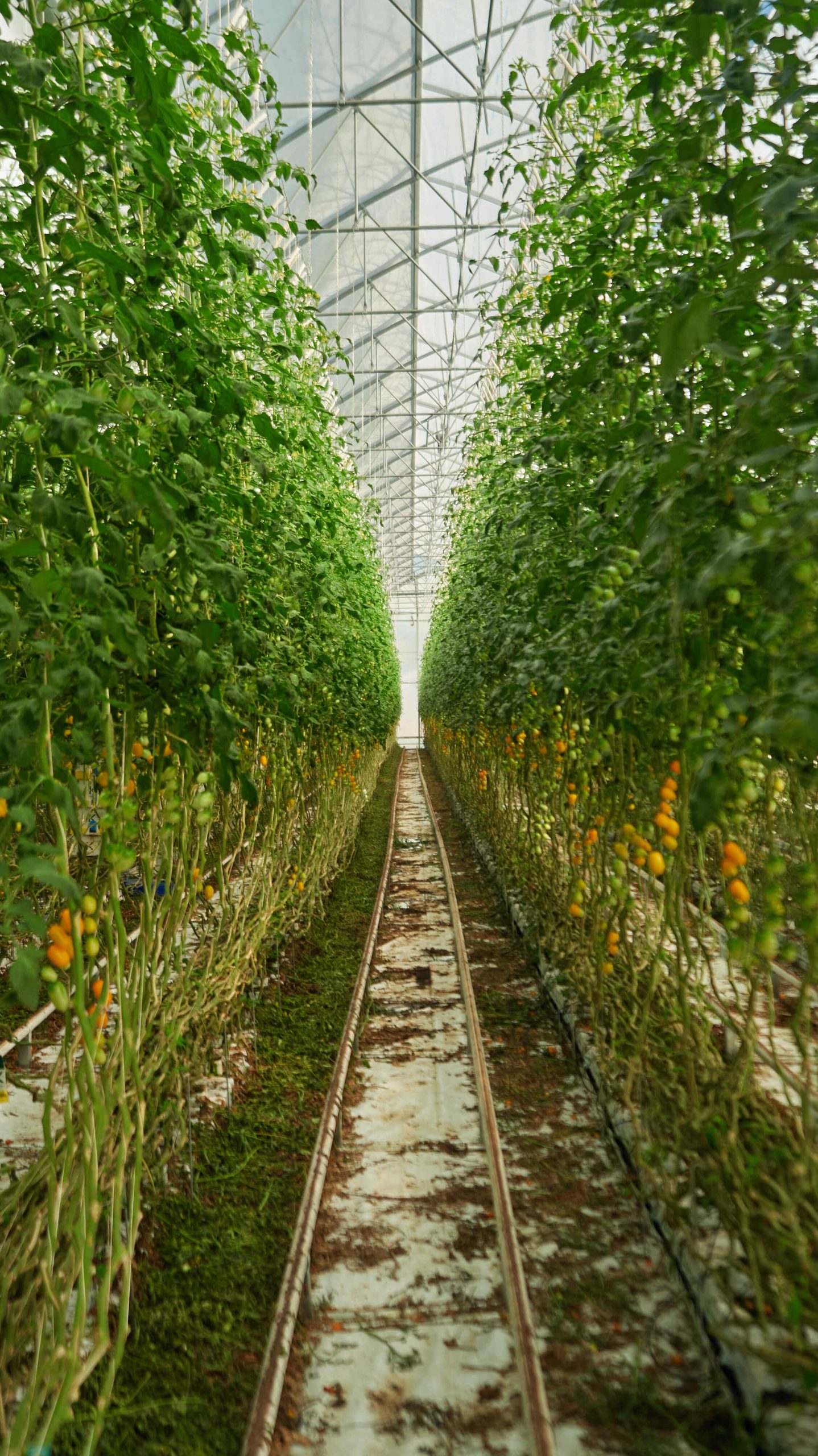

- Intensive vegetable cultivation
- Flower production
- Nurseries and seedling propagation

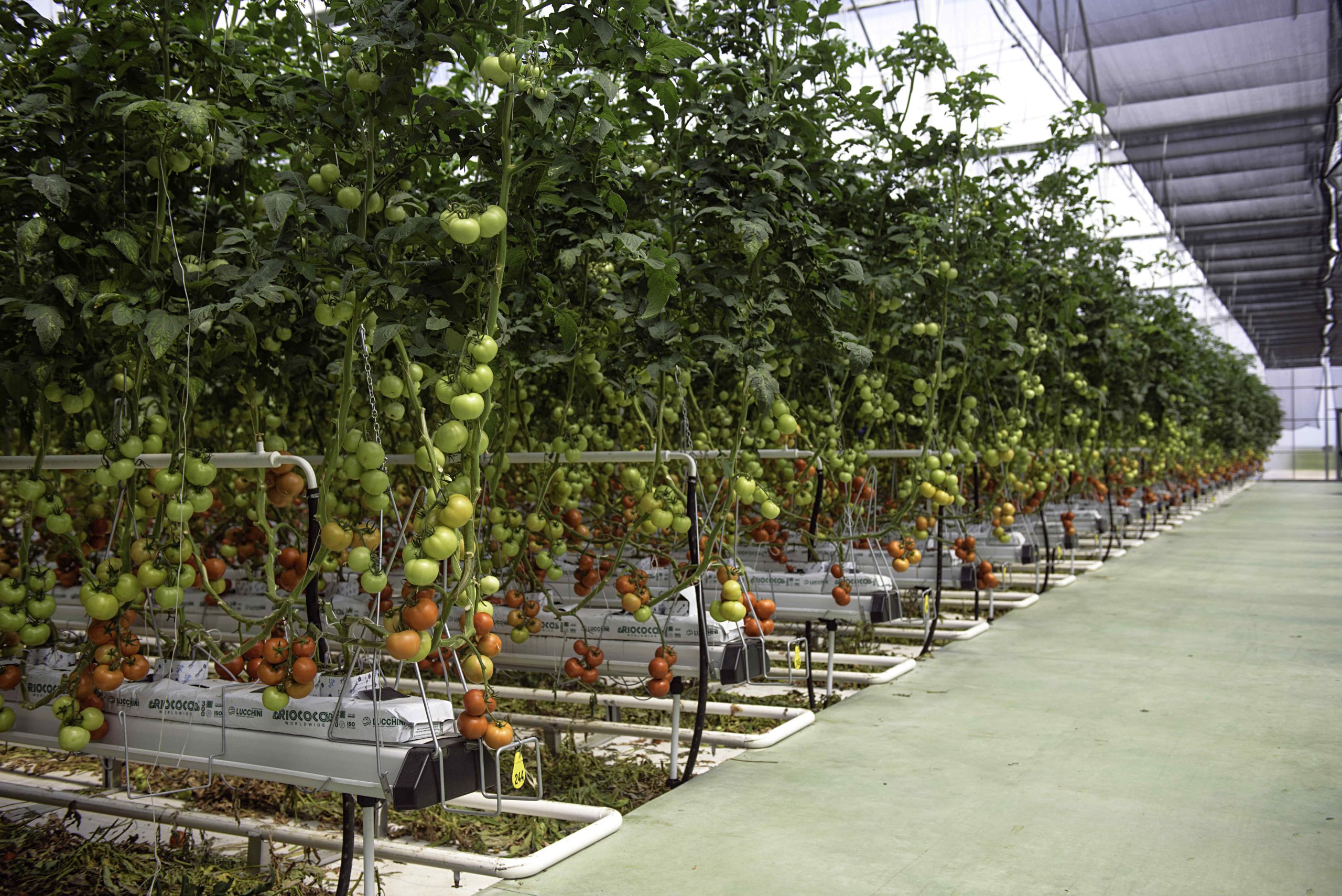

- Modern hydroponic systems

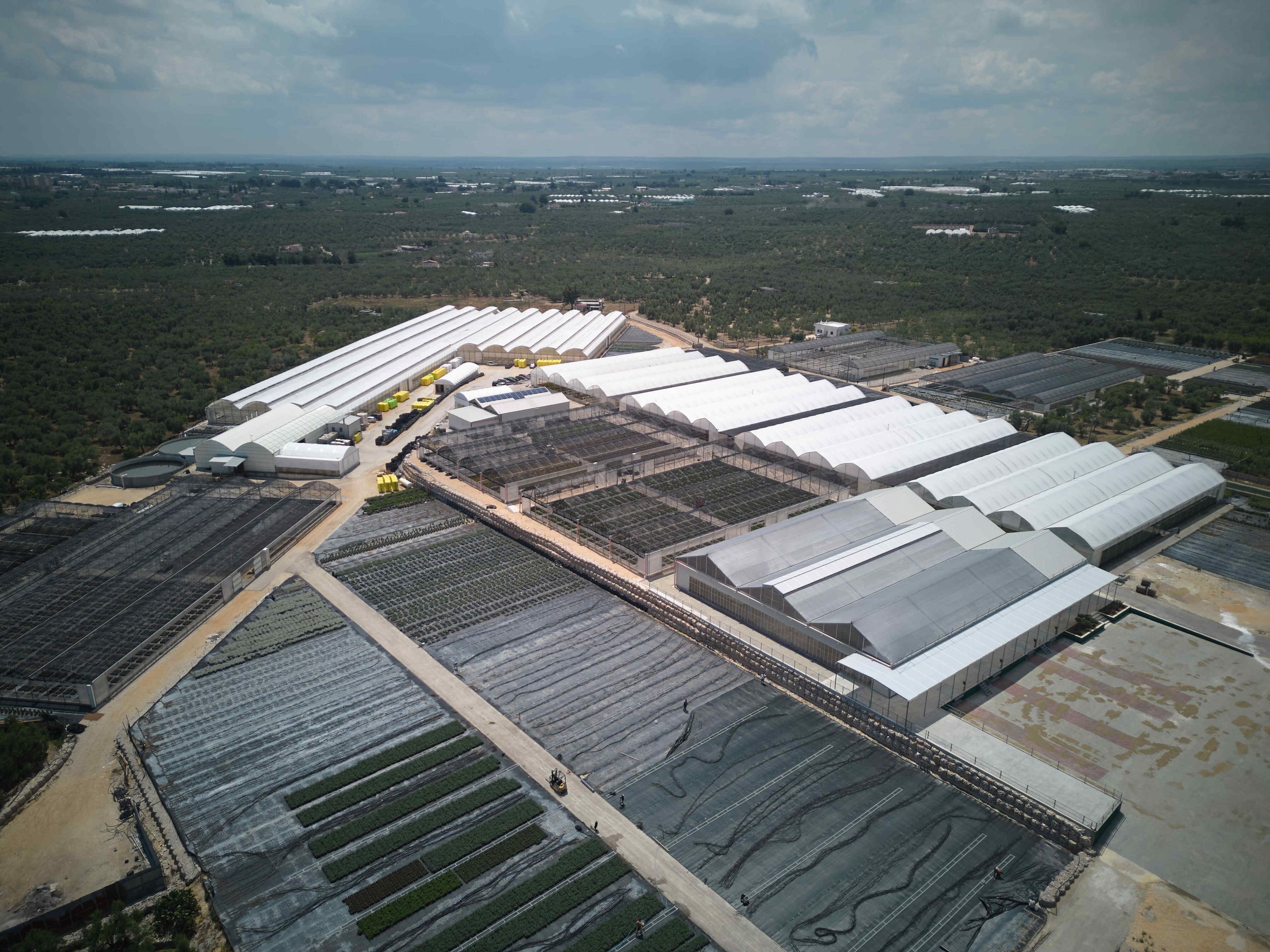

- Commercial and industrial cultivation projects
Key features
- Reinforced structure resistant to heavy snow and wind loads

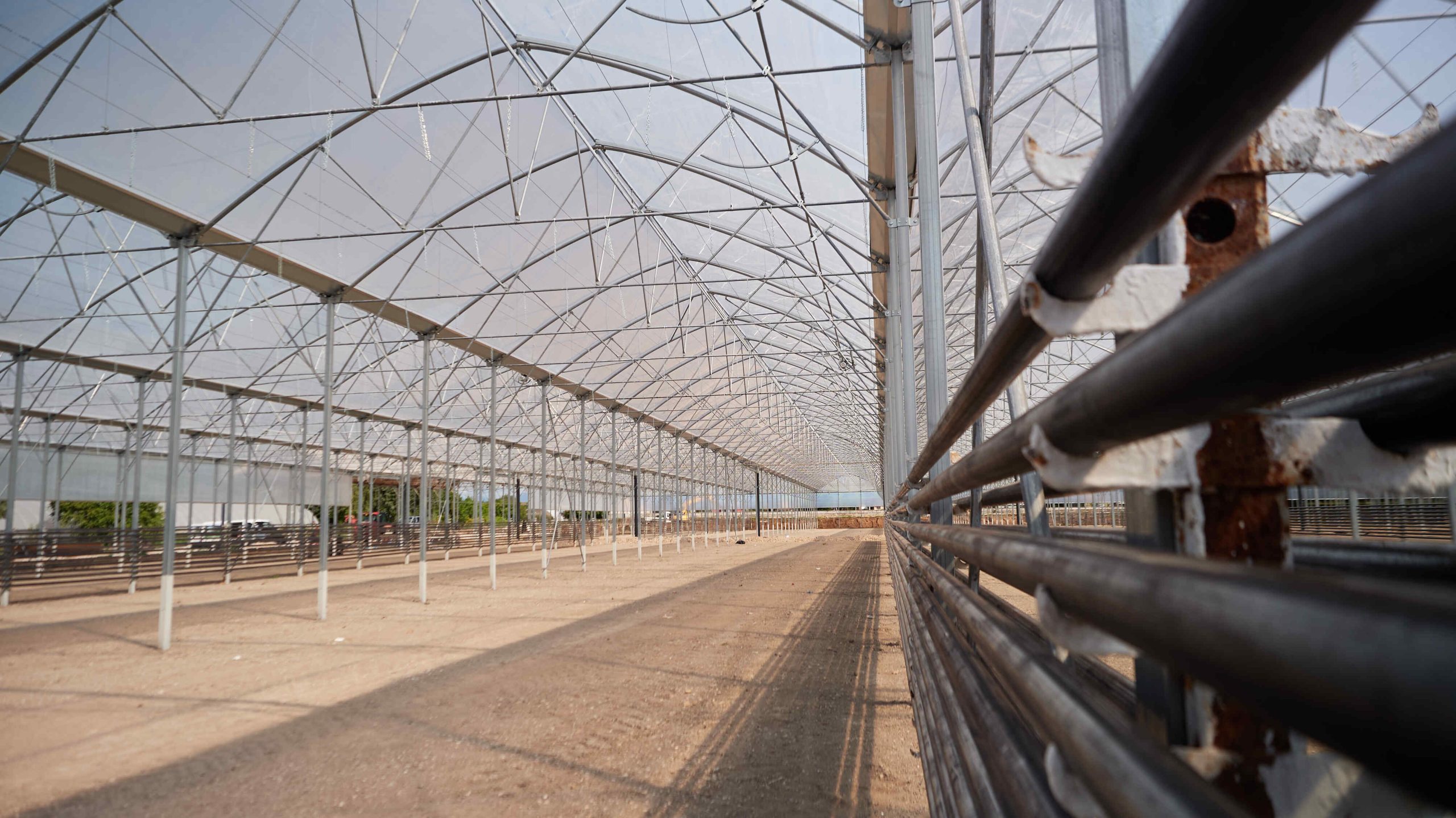

- Truss-type arches allow hanging cultivation systems
- Advanced ventilation systems (roof and side openings)
- Efficient temperature control inside the greenhouse
- Possibility to integrate automated IT control systems
- Significant energy savings due to double inflatable film (up to ~40%)
- Fully customizable according to individual project requirements
Available options
| Component | Available options |
|---|---|
| Foundation types | Design options: concrete foundations, screw foundations, ground-embedded solutions, and bolted connection systems |
| Covering options | Single or double inflatable film (recommended, up to ~40% energy savings); front and rear ends can be made of film, cellular polycarbonate, corrugated polycarbonate, or sandwich panels |

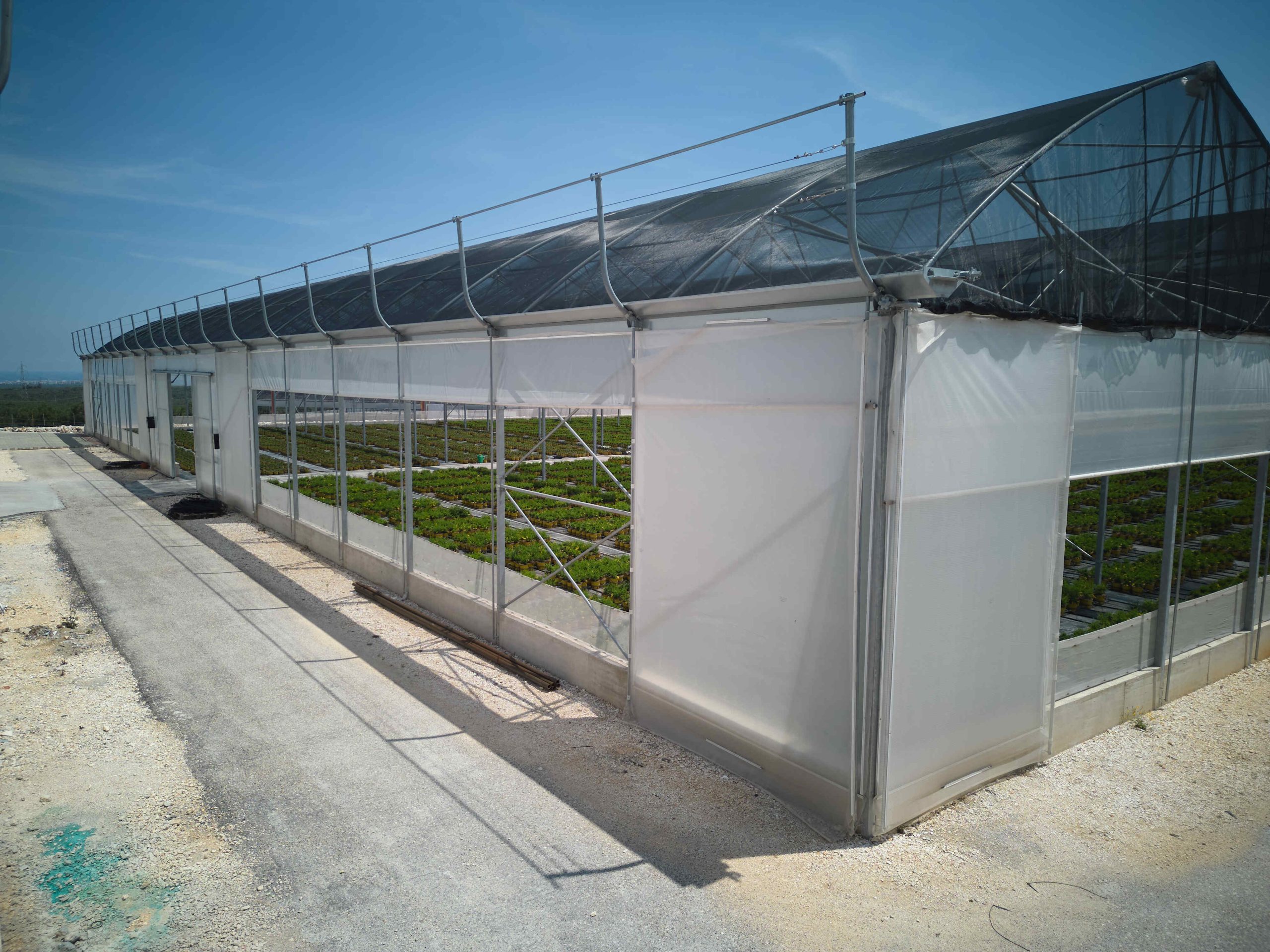

| Side walls | Roll-up side walls; film fastening systems / profiles (single, double, up-down system) |

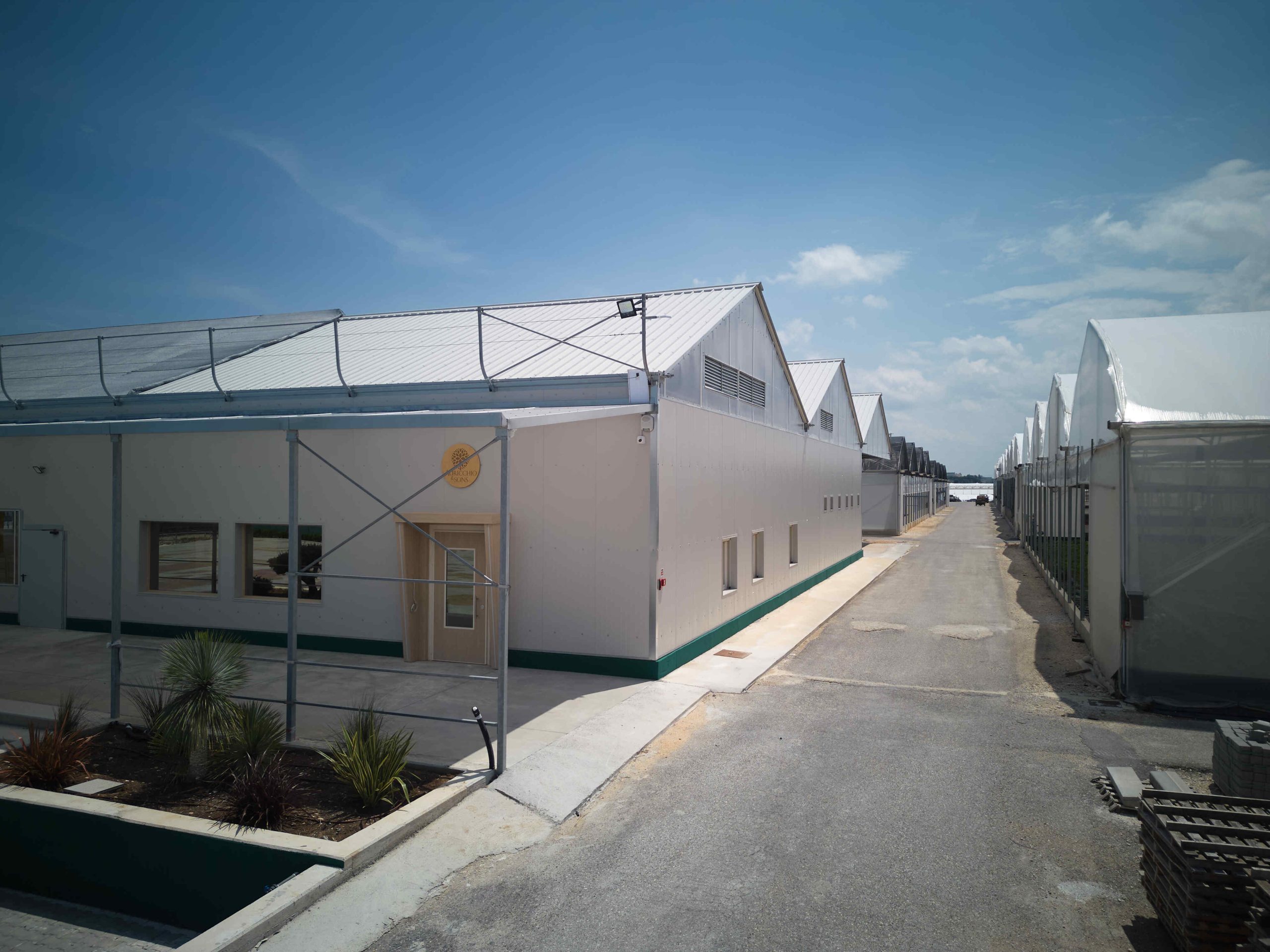

| End walls | Film, polycarbonate (cellular or corrugated), sandwich panels; sliding or hinged doors; optional emergency exits |
| Ventilation | Side ventilation (roll-up openings); roof vents (ridge vents) – single or double; manual or automatic control; option to integrate IT control systems |
Technical specifications
| Specification | Information |
|---|---|
| Structure type | Multi-span greenhouse |
| Available widths | 8 000 / 9 600 / 10 000 / 12 000 / 12 800 mm |
| Usable height | Nuo 2,50 iki 6,00 m |
| Arch spacing | 2,00 / 2,50 / 3,00 m |
| Module length | 4,00 / 5,00 / 6,00 m |
| Arch tubes (diameter) | Ø 60 mm × 1,5 / 2,0 mm |
| Tension rods | Ø 32 / 42 mm |
| Post dimensions | 80 × 100 mm |
| Load-bearing columns | 80 × 80 mm |
| Frame material | SENDZMIR Z275 / Z450 galvanized steel |
Let’s talk about your greenhouse project
Contact us and we will design a customized multi-span greenhouse for you. “Norhage Industri” offers advanced, tailor-made solutions for modern agriculture – from design to installation.
